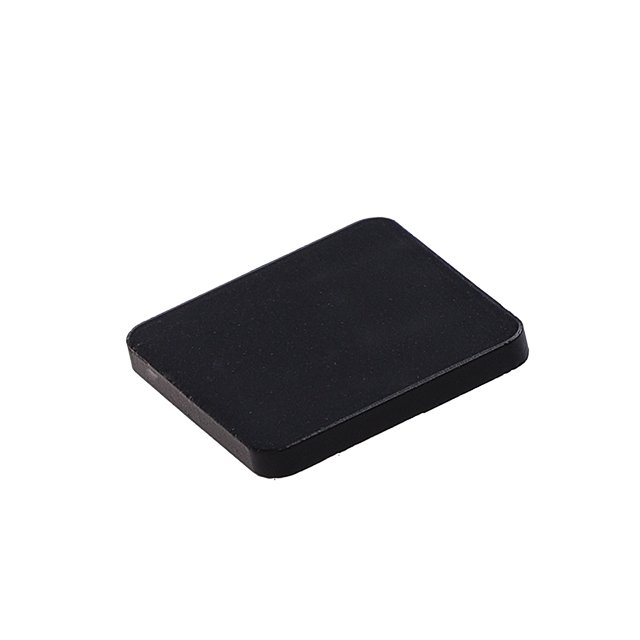

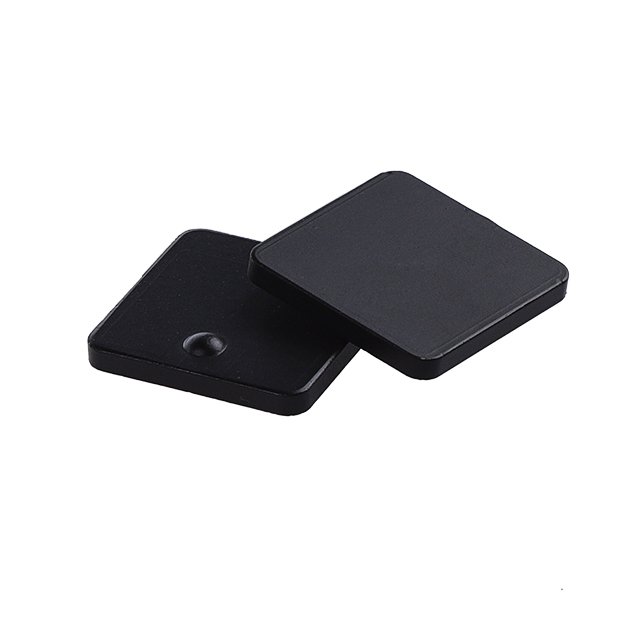

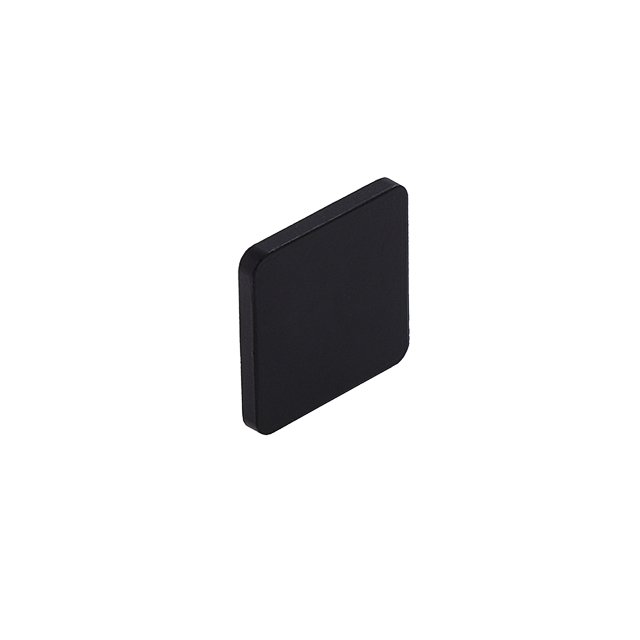

C2525 ceramic tag, as the ideal solution for indoor and outdoor asset management of complicated environment, is widely used in projects of storage management, IT equipment management, metal equipment management, etc., due to its superior advantages of long – term high and low temperature resistance together with flexible&humanized installation.
Resistant to acid-base, waterproof;
Long – term high and low temperature resistance;
Ultrasonic washable;
Flexible and humanized installation;
Storage management;
IT equipment management;
Metal containers management;
Metal equipment management;
Personnel patrol management;
Fixed asset management;
| Compliance | EPC Class1 Gen2; ISO18000-6C |
| Frequency | 902-928MHz , 865~868MHz or Customized frequency |
| Chipset | Alien H3 |
| Memory | EPC 96bits User 512bits |
| Read/write | Yes (EPC and User) |
| Data Storage | 50 years |
| Warranty | One year |
| Material | Ceramic |
| Dimension | 25mm L x 25mm W x 3mm H |
| Storage Temperature | -40°C~+120°C |
| Operating Temperature | -25°C~+85°C |
| Delivery format | Single |
| Installation Method | 3M 300LSE tape |
| Weight | ~ 10g |
| Package | Bubble bag and carton |
| Color | Black |
| Power Supply | Passive |
| Drop Test | 1.5 meters high, 100 drop test passed |
| Alcohol Test | 95% alcohol test passed |
| Gasoline Test | 25mm L x 25mm W x 3mm H |
High & Low Temperature Shock Test | -40 ℃ ~ +85℃, 100 cycles, 30 days |
| Temperature Cycle Test | -40 ℃ ~ +85℃, 100 cycles, 30 days |
| RoHS | Compatible |
| Reading Distance on Metal Surface | Up to 4 meters ( With Impinj R100, 30dbm, 4dbi ) |
| RF Performance Consistency Test | 100% tested by Voyantic Tagformace |
| Options | pre-encoding, barcode laser, logo |
