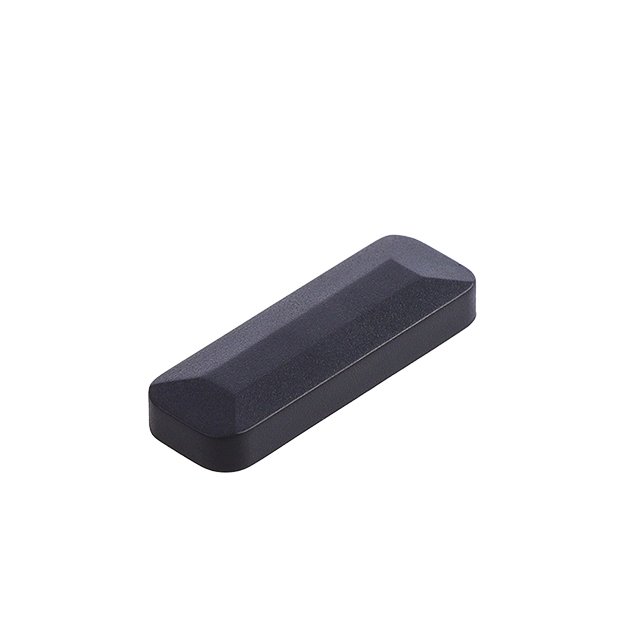

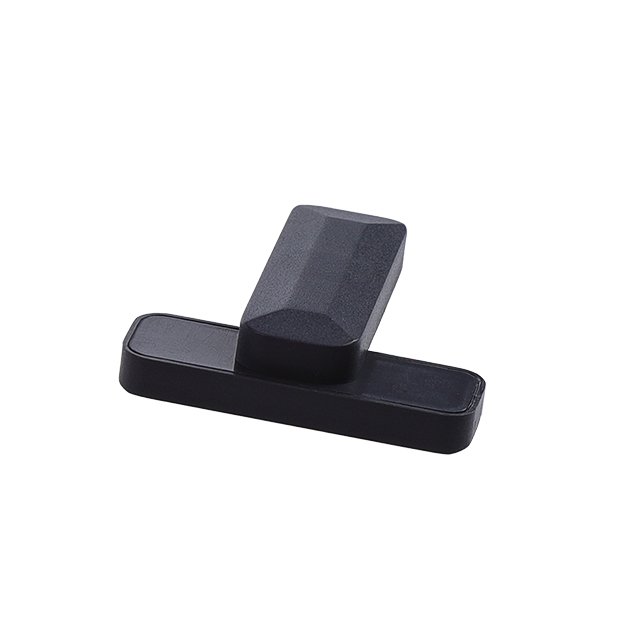

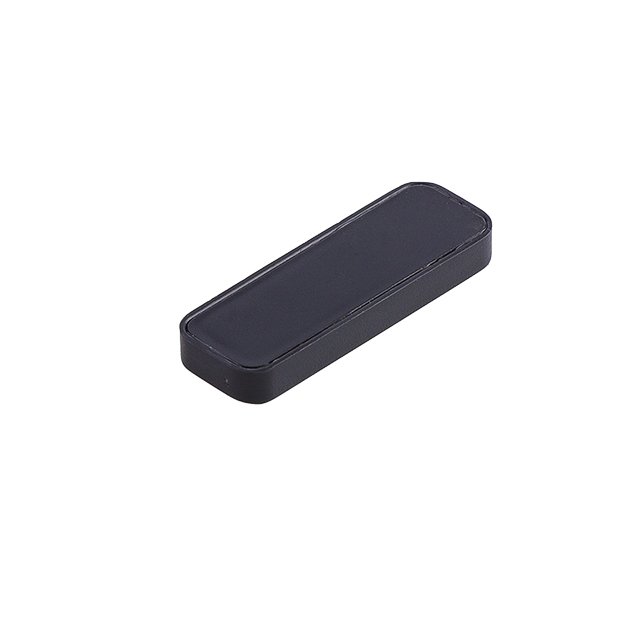

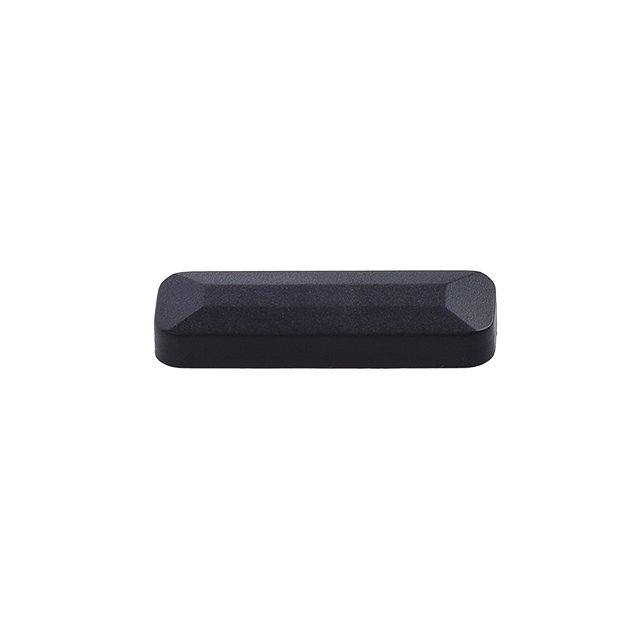

P3512 plastic tag, as the perfect solution for indoor and outdoor asset management of tough environment, is widely used in projects of storage management, IT equipment management, metal equipment management, etc., due to its superior advantages of long – term high and low temperature resistance together with flexible&humanized installation.
Resistant to acid-base, waterproof;
Long – term high and low temperature resistance;
Ultrasonic washable;
Flexible and humanized installation;
Storage management;
IT equipment management;
Metal containers management;
Metal equipment management;
Personnel patrol management;
Fixed asset management;
| Compliance | EPC Class1 Gen2; ISO18000-6C |
| Frequency | 902-928MHz , 865~868MHz (or customized frequency) |
| Chipset | NXP U7M |
| Memory | EPC 128bits User 32bits |
| Read/write | Yes (EPC and User) |
| Data Storage | 50 years |
| Warranty | One year |
| Material | ABS |
| Dimension | 35mm L x 12mm W x 5.1mm H |
| Storage Temperature | -30°C~+80°C |
| Operating Temperature | -25°C~+80°C |
| Storage Humidity | 5%～95% |
| Delivery Format | Single |
| Installation Method | Screw, rivet, glue, or 3M 300LSE tape |
| Weight | ~ 3g |
| Package | Bubble bag and carton |
| Color | Black |
| Power Supply | Passive |
| Drop Test | 1.5 meters high, 100 drop test passed |
| Alcohol Test | 95% alcohol test passed |
| Gasoline Test | Passed |
High & Low Temperature Shock Test | -40 ℃ ~ +70℃, 7 cycles, total 48 hours |
| Temperature Cycle Test |
-40℃～+70℃, 7 times cycle time testing, 48 hours in total |
| RoHS |
Compatible |
| Read Distance on Metal Surface |
Up to 4 meters (EIRP=4W) Up to 1 meters ( With ATID AT880 handheld reader) |
|
RF Performance Consistency Test |
100% tested by Voyantic Tagformace |
| Options | pre-encoding, Barcode laser, logo |
